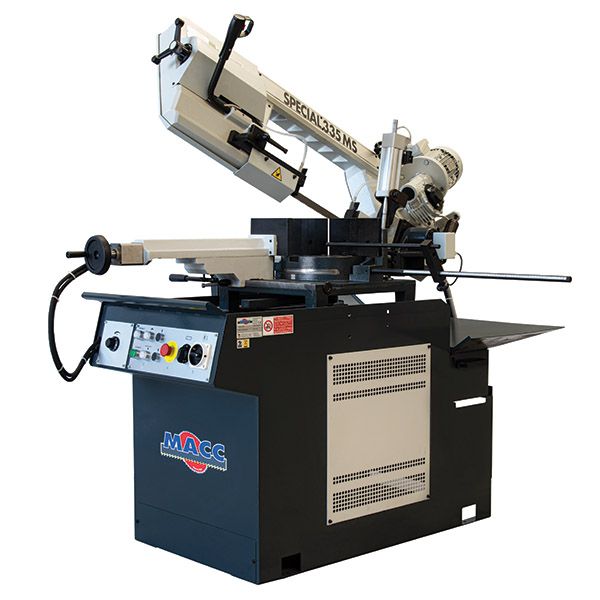

MACC BANDSAW, SEMI AUTO, 260MM CAP, SWIVEL HEAD, DUAL MITRE, 2 SPEED 415V 3PH

Stock Code:
MB-335MS-3
Brisbane:
In Stock

Stock Locations

  • Melbourne:
    Out of Stock
  • Perth:
    Out of Stock
  • Tasmania:
    Out of Stock
RRP:
$16,995.00

Features

  • Italian made quality.
  • 2-way swivel head enables from 0° to 60° mitre cuts.
  • Dual mode operation.
    - Trigger switch with manual down feed for small quick cuts.
    - Semi-Automatic function for large production type jobs.
  • Dual direction heavy-duty vice.
  • Incorporated recirculating coolant system.
  • Adjustable material stop for repetitive production.
  • Safety emergency stop switch.
  • 12 months warranty.
  • Comes complete with stand & blade.


Semi-Automatic Function
  • Operator Inserts Material
  • Operator Press Start Button
  • Vice Clamps Material
  • Blade Motor Starts
  • Bow Lowers
  • Cuts Material
  • Bow Rises
  • Blade Stops
  • Vice Opens
  • Cylce Repeats

Specifications

Motor 1.5hp Three Phase (415V)
Blade Speed 2 Speed 38 / 78 mpm
Blade Size 27mm x 0.9mm x 3010mm
Weight 415kg

Cutting Capacity
Cutting Angle Round Square Rectangle
90° 260mm 250mm 330 x 180mm
45° (R) 215mm 200mm 210 x 160mm
60° (R) 130mm 130mm 140 x 130mm
45° (L) 180mm 155mm 225 x 60mm
