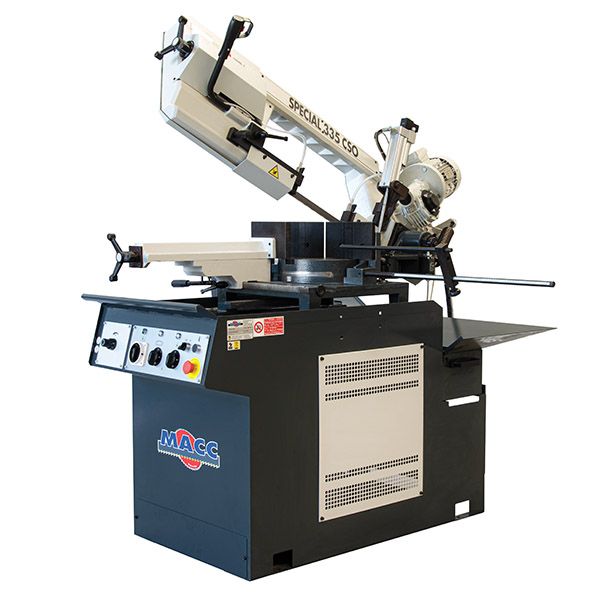

MACC BANDSAW, 260MM CAP, SWIVEL HEAD, DUAL MITRE, 415V 3PH, HYD DOWNFEED

Stock Code:
MB-335CSO-3
Brisbane:
In Stock

Stock Locations

  • Melbourne:
    In Stock
  • Perth:
    In Stock
  • Tasmania:
    Out of Stock
RRP:
$12,995.00

This item is considered bulky. Please Click Here to view more info on bulky goods.

Features

  • Italian made quality.
  • 2-way swivel head enables from 0° to 60° mitre cuts.
  • Dual mode operation.
    - Trigger switch with manual down feed for small quick cuts.
    - Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material.
  • Dual direction heavy-duty vice.
  • Incorporated recirculating coolant system.
  • Adjustable material stop for repetitive production.
  • 12 months warranty.
  • Comes complete with stand & blade.
  • Safety emergency stop switch.
  • Variable speed model available.

Specifications

Motor 1.5hp Three Phase (415V)
Blade Speed 2 Speed 38 / 78mpm
Blade Size 27mm x 0.9mm x 3010mm
Weight 365kg

Cutting Capacity
Cutting Angle Round Square Rectangle
90° 260mm 250mm 330 x 220mm
45° Right 215mm 200mm 210 x 160mm
60° Right 130mm 130mm 140 x 130mm
45° Left 180mm 155mm 225 x 60mm
