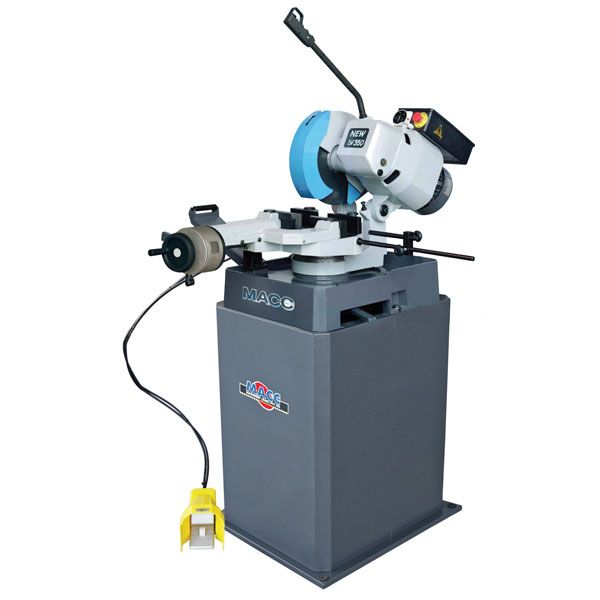

MACC 350MM 3PH 20/40RPM DOUBLE VICE COLDSAW WITH FOOT CONTROLLED PNEUMATIC VICE ELECTRIC COOLANT PUMP

Stock Code:
MC-NEW350EDPV-3
Brisbane:
In Stock

Stock Locations

  • Melbourne:
    Out of Stock
  • Perth:
    Out of Stock
  • Tasmania:
    Out of Stock
RRP:
$8,195.00

This item is considered bulky. Please Click Here to view more info on bulky goods.

Features

  • As per NEW350EDV with addition of pneumatic vice.
  • Italian made quality.
  • Swivel head 45° left & right.
  • Trigger switch operation.
  • Quick locking double vice with sliding counter vice.
  • 2 speed machine. 20rpm for cutting sainless, 40rpm for mild steel.
  • Vice automatically closes when triggered from foot control.
  • Recirculating coolant system with electric pump.
    - Creates instant flow of coolant.
    - Flood applied coolant creates a cooler cut, for increased finish quality & blade life.
  • Adjustable material stop for repetitive production.
  • Safety emergency stop switch.
  • 12 months warranty.
  • Comes complete with blade.
  • Stand shown is available separately - Part# MC-STAND315

Specifications

Motor 3.2hp Three Phase (415V)
Blade Speed 2 Speed 20 / 40rpm
Blade Size 350mm
Blade Bore 32mm
Weight 210kg

Cutting Capacity
Cutting Angle Solid Round Round Square Rectangle
90° 60mm 110mm 100mm 120 x 80mm
45° (L & R) 55mm 80mm 80mm 80 x 80mm
