Bulky

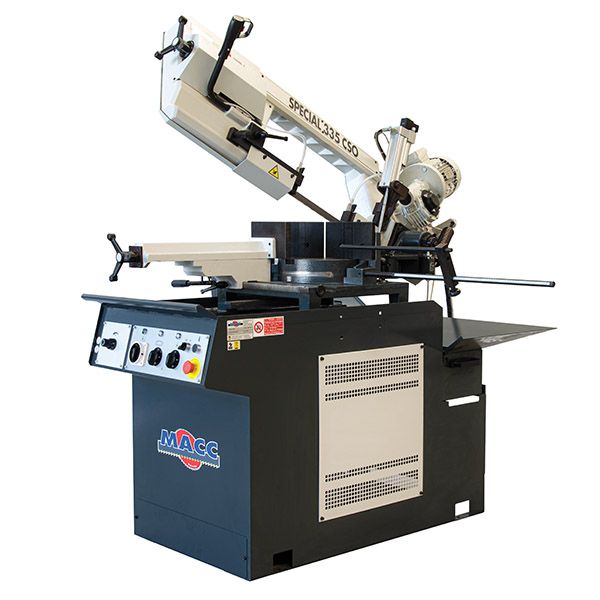

MACC BANDSAW, 260MM CAP, SWIVEL HEAD, DUAL MITRE, VARIABLE SPEED 240V 1PH, HYD DOWNFEED
Stock Code:
MB-335CSOV-1
RRP:
$15,599.00
Downloads
This item is considered bulky. Please Click Here to view more info on bulky goods.
Features
- Italian made quality.
- Variable speed model.
- 2-way swivel head enables from 0° to 60° mitre cuts.
- Dual mode operation.
- Trigger switch with manual down feed for small quick cuts.
- Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material. - Dual direction heavy-duty vice.
- Incorporated recirculating coolant system.
- Adjustable material stop for repetitive production.
- Comes complete with stand & blade.
- Safety emergency stop switch.
Specifications
| Motor | 1.5hp Single Phase (240V) | ||
| Blade Speed | Variable Speed 20-90 mpm | ||
| Blade Size | 27mm x 0.9mm x 3010mm | ||
| Weight | 365kg | ||
| Cutting Capacity | ||||
|---|---|---|---|---|
| Cutting Angle | Round | Square | Rectangle | |
| 90° | 260mm | 250mm | 330 x 220mm | |
| 45° Right | 215mm | 200mm | 210 x 160mm | |
| 60° Right | 130mm | 130mm | 140 x 130mm | |
| 45° Left | 180mm | 155mm | 225 x 60mm | |
