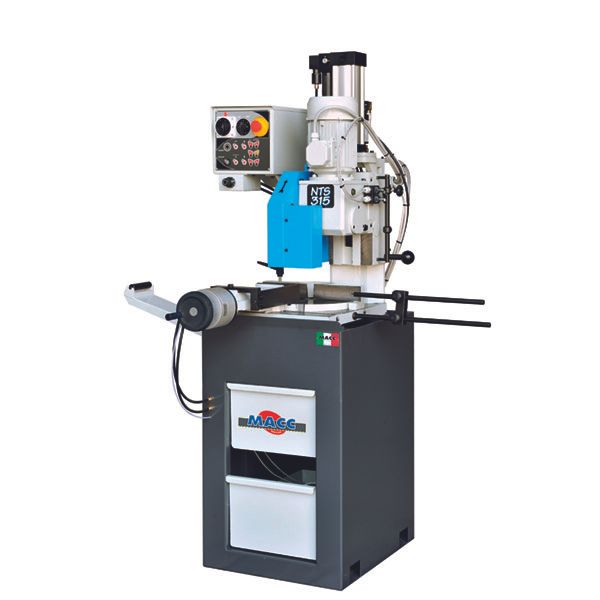

MACC 315MM SEMI AUTOMATIC 3PH 33/66RPM VERTICAL COLDSAW

Stock Code:
MC-NTS315
Brisbane:
In Stock

Stock Locations

  • Melbourne:
    In Stock
  • Perth:
    Out of Stock
  • Tasmania:
    Out of Stock
RRP:
$13,495.00

This item is considered bulky. Please Click Here to view more info on bulky goods.

Features

  • Italian made quality.
  • Swivel head 45° left & 60° right.
  • Vertical coldsaws offer increased rigidity over standard horizontal coldsaws, decreasing chatter and increasing cut finish quality.
  • Semi-Auto machine performs the following operations automatically during the cutting cycle:
    1. Vice closes and blade motor starts.
    2. Cutting head downstroke.
    3. Return of head and blade motor stop.
    4. Vice re-opens.
  • Recirculating coolant system with electric pump.
    - Creates instant flow of coolant.
    - Flood applied coolant creates a cooler cut, for increased finish quality & blade life.
  • Powered hydraulic down feed and return.
  • Adjustable material stop for repetitive production.
  • Safety emergency stop switch.
  • Compressor required to power vice.
  • 12 months warranty.
  • Comes complete with blade & stand.

Specifications

Motor 2.5hp Three Phase (415V)
Blade Speed 2 Speed 33 / 66rpm
Blade Size 315mm
Blade Bore 32mm
Weight 300kg

Cutting Capacity
Cutting Angle Solid Round Round Square Rectangle
90° 70mm 100mm 90mm 135 x 80mm
45° (L & R) 70mm 100mm 90mm 100 x 80mm
60° (R) 70mm 80mm 70mm 80 x 70mm
